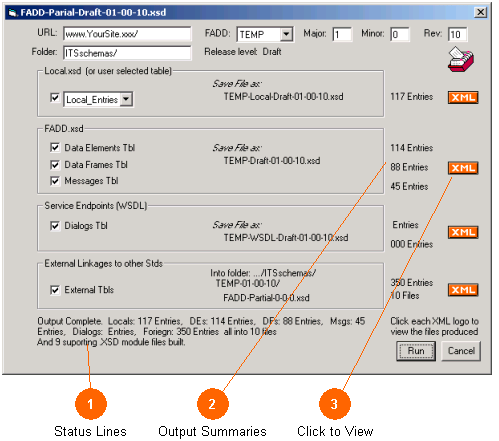

XML Export Post-Run   This view shows the XML Schema Export Dialog window after a schema has been exported. Several informational messages are discussion below. Each produced file can be viewed with the users preferred XML schema tool by clicking on the red XML logo to the right of the screen, or with most browsers if the user does not have any such tool. [Refer to Registering Support Tools for details of how to do this if needed] Status Lines Here we see a summary of the records exported. Abbreviations like DE/DF (data element, data frame) are used. The total number of different files created is reported. [Top] Output Summaries The number of record exported from each individual table is listed in this small status line area. [Top] Click to View This icon appears after the run and, if clicked, will launch an application to view the created files, if the system has an application that can view XSD files.  Otherwise the file can also be viewed by most browsers. [Top]
