Record Entry Error Report

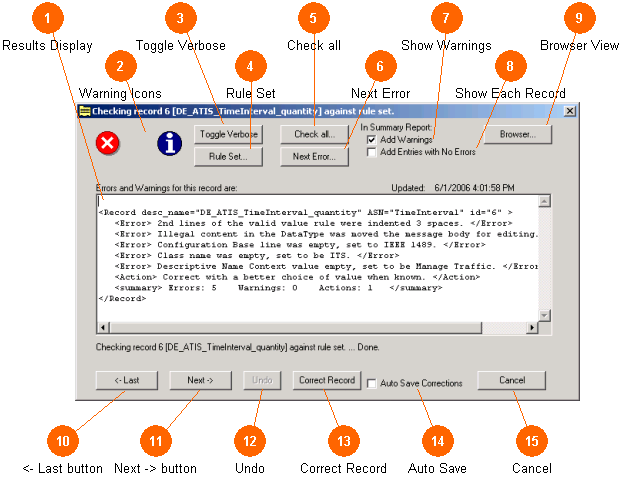

The Error Report Dialog displays the results of the currently selected rules applied to the currently selected record. The log displays what errors or omissions were found, what changes were made or are proposed, and may suggest some need for follow-up action to perfect the record. The current selected rules can be invoked and edited with the Rule Set... button (below).

Various buttons in this Dialog window allow the control of the rule checking process. The Correct Record and the Undo buttons provide a handy way to visually see what the effect of the current rule changes will be on the record. If the rules are run on an entire table, an XML report of the errors detected and any changes made is produced and displayed for your use as well.

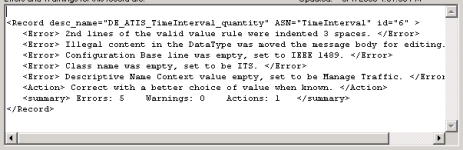

Results Display The results of the rule checking process are shown here. Note that a simple XML style format is used. [Top]

Warning Icons Depending on the types of errors found, various warning icons will be displayed here. In this example, an error icon and an information-action icon are shown. A warning icon can also appear. Note that these categories are repeated in the XML tag preceding each text statement in the display area. [Top]

Toggle Verbose This button toggles the Verbose button in the Edit-View window, providing additional or less information in the underlying Edit-View window. [Top]

Rule Set This button displays the Rule Set so that the rules used can be selected. [Top]

Check all This button checks all of the records in the current table. [Top]

Next Error This button checks the next record in the current table and repeats this process until an error is found. It stops at the first record which contains an error. [Top]

Show Warnings When checked, warnings found for a record are displayed. When unchecked, warning messages are suppressed. [Top]

Show Each Record When checked, all records are noted in the output report, even if they have no errors. This is used when checking the entire table. Some users want to see confirmation that each record was passed without finding an error. [Top]

Browser View When pressed, the errors messages are displayed in a browser as an XML file. [Top]

<- Last button This button moves to the prior record in the table. When the first record is reached, it moves to the last record in the table. [Top]

Next -> button This button moves to the next record in the table. When the last record is reached, it moves to the first record in the table. [Top]

Undo This button reverses any changes made by the rules process, returning the record to its prior state. [Top]

Correct Record The changes recommended by the rules are applied to the record. View the underlying record to see the results. [Top]

Auto Save Save the record without asking each time, when this is checked. [Top]

Cancel  Close the Dialog box. [Top]
