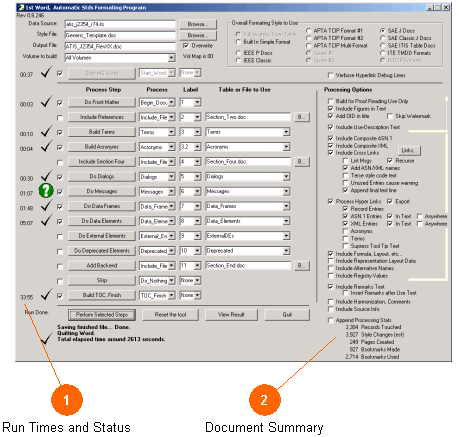

This view shows the tool when a run has been completed and the tool is finished. This run used the SAE J2354 ATIS standard for its script, but the recipe step settings and values are typical of most runs.

As you can see, the run took just under 44 minutes (2613 seconds) from start to finish and the vast majority of this time was taken up by the hyper-linking step (78% of the time). This run would be considerably longer if the external data concepts (step Do External Elements) had been rendered out (about 500 pages more).

Run Times and Status The overall running time of each step is presented here. Again, if any errors or strange things need to be reported about this step, the question mark icon will be displayed and the errors shown in a browser window. You can recall these error windows by clicking on the icon. [Top]

Document Summary Some useful stats about the entire run are collected here and shown as well as being updated during the run. In this run we can see that... A total of 3,304 access records were in some way accessed or touched. This reflects not only the records that were printed but those records that were found in SQL queries to determine linkages for the used-in sections. In producing the word document, about 3,927 changes in the style were made in the text. Word has a working limit of about 20,000 such changes in any one document. A total of 249 pages were produced (a thin standard by current norms). In this document there are 927 bookmarks (landing places for hyperlinks), and 2,714 internal hyperlinks (places that link to these bookmarks). Word documentation claims to allow about 16,000 of these in any one document, although this tool has produced Word documents with over 20,000 such links. [Top]
